Philips WiZ RGB LED Strip Driver 25W (WACA) – Smart WiFi Controller For Philips WiZ RGB LED Strips (16M Colours + Tunable White + Dimmable)
- 42%

Philips WiZ RGB LED Strip Driver 25W (WACA) – Smart WiFi Controller for Philips WiZ RGB LED Strips (16M Colours + Tunable White + Dimmable)

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

Buy the Philips WiZ RGB LED Strip Driver 25W (WACA) – an advanced smart WiFi driver and controller designed for Philips WiZ RGB LED Strips (5m, 2m). Supports custom-length strips, features an integrated 6-pin RGB + CCT connector, 12V DC output, delivers 1.7A current and seamless app-based control via built-in WiFi. Perfect replacement for old drivers and controllers or use it power-up the trimmed-out WiZ RGB LED Strips.

Original price was: ₹3,299.00.Current price is: ₹1,899.00.

In stock

7 people viewing this product now!
25 units sold
Quantity discounts
1-2 1,899.00
3-5 1,880.01
6-10 1,861.02
11+ 1,842.03
100% Genuine brand products
Free delivery above ₹1,000
Buy more save more

Philips WiZ RGB LED Strip Driver | 25W 2200lm WiZ Color Strip Driver (WACA)

The Philips WiZ RGB LED Strip Driver | 25W (WACA), specially designed to work with Philips WiZ WiFi-enabled RGB LED Strips; delivers reliable performance, built-in WiFi control, and easy integration. Whether you want to connect a new strip or replace your old LED strip controller, this driver is the right fit.

Info: WACA means, White and color ambience.

About This item

  • Designed for Philips WiZ RGB LED Strips: Works with Philips WiZ RGB LED Strip 5m (25W), 2m (20W), and 5m (21W).
  • Supports Cut Strips: Can drive trimmed LED strips when you need custom lengths.
  • 6-pin Connector: Includes RGB and dual-color CCT (Warm & Cool White) terminals for accurate color control.
  • Built-in WiFi Module: Connects directly to the Philips WiZ app for wireless smart lighting control.
  • Integrated CV LED Driver: Combines WiFi controller and constant voltage driver in one unit.
  • Safe Power Delivery: Outputs 12VDC at 1.7A with a maximum supported length of 5 meters.
  • Simple wiring: Color-coded connections and labeled terminals for easy installation.
  • Supported LED Strip Type:  RGB+CCT
  • Power Consumption: 25W
  • Output Voltage: 12V DC
  • Maximum Output Current: 1.7A
  • Input Voltage: 240V AC
  • Connector Type: 6-Pin (RGB + CCT)
  • Connectivity: Built-in WiFi (Philips WiZ ecosystem)
  • Maximum Strip Length: Up to 5 meters

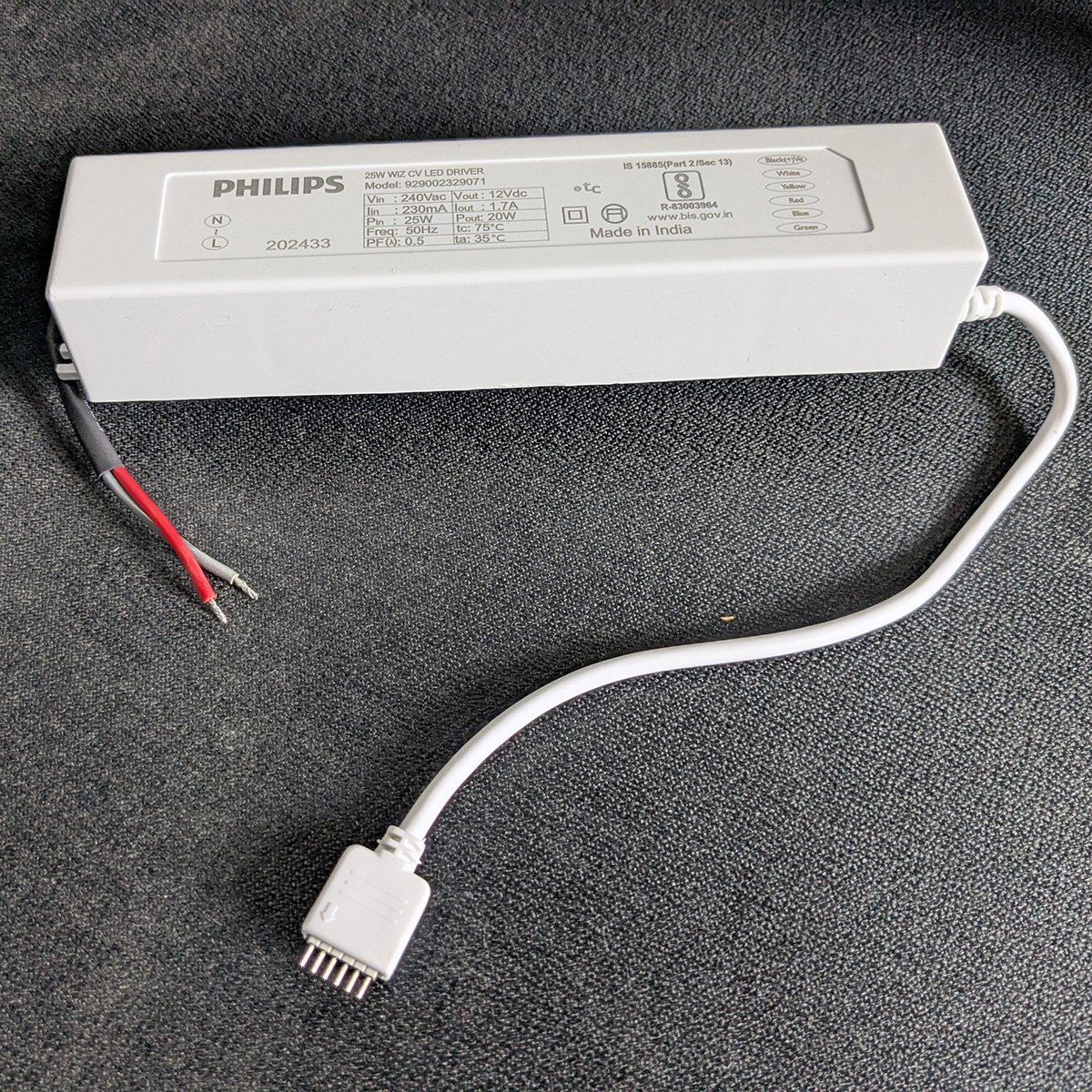

The Philips WiZ Color Strip Driver

The Philips WiZ RGB LED Strip Driver is the essential power and control module for your Philips WiZ smart RGB LED strips. It is compatible with multiple Philips WiZ RGB LED strip models, including the popular 5m 25W, 2m 20W, and 5m 21W variants. If you need to cut your LED strip to a custom size, this driver can also power the cut section without issues.

Philips WiZ RGB LED Strip Driver | 25W 2200lm (WACA)

With a 6-pin output, the driver supports RGB colors as well as both warm and cool white tones, delivering vibrant and adjustable lighting. The built-in WiFi module ensures that your strip connects smoothly to the WiZ mobile app, eliminating the need for separate controllers.

Older Philips WiZ strips required two accessories (a WiFi controller and CV LED driver). The new Philips WiZ 25W Driver (WACA) combines both functions into one compact unit, making upgrades easy. Do note that earlier versions of the strips may have different pin orders, so users should double-check wiring before installation. It is possible to connect them in different order using additional wires and berg strip pins (Amazon Link), if you have some DIY skills in soldering.

Philips WiZ RGB LED Strip Driver | 25W 2200lm (WACA)

This LED Driver delivers 1.7A at 12V DC, consuming up to 25W of power. To ensure longevity and prevent overheating, the recommended strip length is 5 meters maximum.

Installation Tips

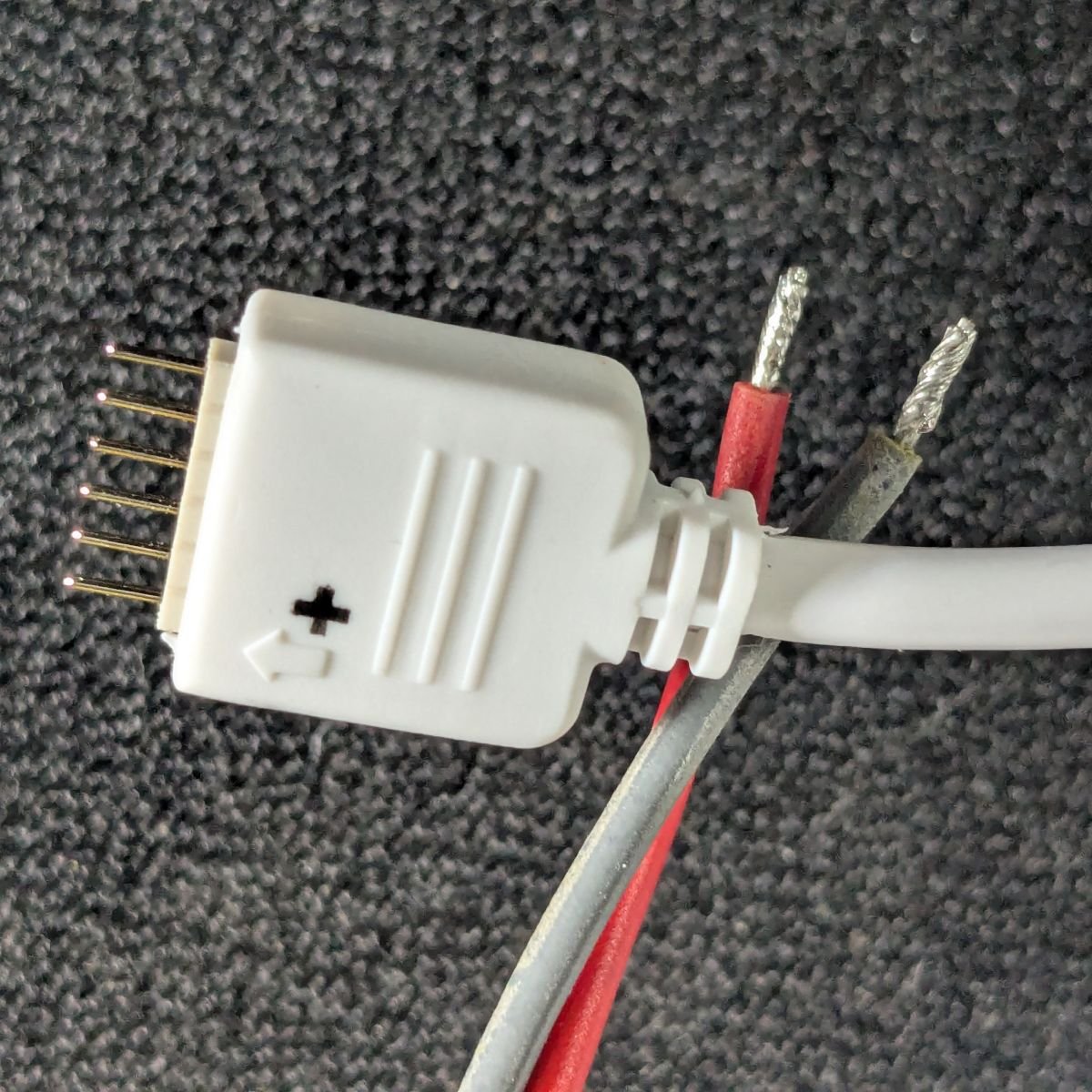

  • Always ensure the +ve pin matches with the strip connector placement before powering on.
  • Check wiring carefully, especially with older Philips WiZ strip models. Some DIY skills may be required for modifications.
  • If upgrading from an older Philips WiZ LED strip setup, this unit can replace both the WiFi Controller and RGB CV LED Driver.

This driver brings convenience, durability, and smart technology together in one compact package. With WiFi built-in, you don’t need additional accessories to enjoy app-based control, scheduling, or smart integrations. It’s the perfect match for bringing out the full potential of your Philips WiZ RGB LED strips.

Download WiZ App

Google Pay Store ButtonApple App Store Button

Check more Philips products here -> Philips store

Accessories

3,688.00 for 2 item(s)

Specification: Philips WiZ RGB LED Strip Driver 25W (WACA) – Smart WiFi Controller for Philips WiZ RGB LED Strips (16M Colours + Tunable White + Dimmable)

Product Details
Manufacturer

HSN Code

Part Number / Item Code

929003636901

Model Name

25W 2200lm WiZ Color Strip Driver (WACA)

Power Source

AC Mains, Corded Electric (Open Wire)

Intended Use

Indoor

Mounting options

Screw Fix

Product Weight

150g

Product Dimensions

H: 30mm, L: 182 mm, W: 38mm

Requirements

WiFi Network

Smart Features
Communication Type
Controller Type
Voice Assistants
Supported OS

,

Supported Apps

Advanced Hardware Features

Bluetooth for faster paring, Creates different patterns, Light Brightness Control

Special Software Features

Adjustable Color, Circadian Rhythm Feature, Cyclic Scene Selection, Dimmable | Tunable White, Light Brightness Control, Music Sync, No hub required, Routines, Scenes

Dimming Control
Dimmable
Dimming Type

Wireless Dimming

Smart Lighting Features
Light Color Category

Color & Tunable White (CCT)

Light Specifications
LED Driver Type

RGB+CCT CV LED Driver

Wattage

25W

Design & Interface
Product Shape

Rectangular

Cable Length

20cm

Accessories Specification
Adapter Type

WiFi LED Driver

Adapter Part Number

929002329071

Adapter Generic Name

Philips 25W WiZ CV LED Driver

Adapter Specification

Input: 240V, Output 12Vdc, 25W RGBWW CV LED Driver

Adapter Input Voltage

240V AC

Adapter Input Current

230mA

Adapter Output Voltage

12V DC

Adapter Output Current

1.7A

Adapter Power Consumption

Pin: 25W, Pout: 20W

Adapter Power Factor

0.5

Adapter Working Temperature

35°C – 75°C

Adapter Cable Length

In: 9cm, Out: 20cm

Adapter Input Connector

Open Wire

Adapter Output Connector

Berg Connector – 6 pins

Electrical Rated Values
Input Voltage

AC 240V

Working Voltage

AC 240V

Power Consumption

25W

Power Factor

0.5

Rated Current

230mA

Maximum Load

20W

Network Connectivity
Supported Wi-Fi Bands

2.4GHz

Wi-Fi Security

WPA / WPA2 – Personal

Safety & Privacy
Working Temperature

35ºC – 75ºC

In The Box
Number of Products

1 x WiFi LED Driver

Use Manual
Package Contents

1 × WiFi LED Driver Adapter

Product Warranty
Warranty Period

2 Years

Service Type

Through Customer Care

Warranty Coverage

Manufacturing Defects

Warranty Not Covered

Physical Damage, Water Damage, Abnormal voltage, Corrosive environments, Misuse, Unauthorized repairs

Additional Information
Customer Care Address

Signify Innovations India Ltd, PS Arcadia Central, 3A, 3rd Floor, 4A, Abanindranath Thakur Sarani(Camac Street), Kolkata-700017, West Bengal, India

Customer Care Phone

0008000507777 (Toll Free)

Customer Care Email

support.philipslightingindia @signify.com

Dimensions
Weight150 g
Dimensions20 × 4.6 × 4.6 cm
