Product Details |
|---|
| Manufacturer | TP-Link |
|---|
| HSN Code | 85258090 |
|---|
| Model Number | Tapo C320WS |
|---|
| Model Name | Outdoor Home Security Wi-Fi Camera |
|---|
| Color | White |
|---|
| Material | Synthetic |
|---|
| Power Source | AC-DC Power Adapter |
|---|
| Intended Use | Outdoor |
|---|
| Mounting options | Wall Mount |
|---|
| Product Dimensions | 142.3 × 103.4 × 64.3mm, 5.6 × 4.07 × 2.53 in |
|---|
| Requirements | Ethernet Port, WiFi Network |
|---|
| Adapter Included? |
|
|---|
|
|
Smart Features |
|---|
| Communication Type |
|
|---|
| Controller Type |
|
|---|
| Voice Assistants |
|
|---|
| Supported OS | Android, iOS |
|---|
| Supported Apps | TP-Link Tapo App |
|---|
| Software Updates | Through Tapo App |
|---|
| Integrations | Home Assistant, IFTTT |
|---|
| Hub Required? |
|
|---|
| Advanced Hardware Features | Full Duplex Audio, On-Device Machine Learning, Sound & Light Alarm, Starlight Image Sensor |
|---|
| Special Software Features | Activity Zones, AI Event Detections, Human Detection, Intrusion Detection, Line-Crossing Detection, Vehicle Detection |
|---|
|
|
Camera Specifications |
|---|
| Camera Type | Outdoor, IP Camera |
|---|
| Image Sensor Type | CMOS, Progressive Scan, Starlight Sensor |
|---|
| Image Sensor Size | 1/3“ |
|---|
| Lens F-Number | F1.6 ±5% |
|---|
| Lens Focal Length | 3.18mm ±5% |
|---|
| Field of View (FOV) | 113°(Diagonal), 54°(Vertical), 97°(Horizontal) |
|---|
| Effective Pixels | 4MP |
|---|
| Maximum Video Resolution | 2K QHD (2560 × 1440 px) |
|---|
| Live Video? |
|
|---|
| Night Vision? |
|
|---|
| IR Distance | 98 ft / 29.9 m |
|---|
| IR LED Wavelength | 850 nm |
|---|
|
|
Pan / Tilt |
|---|
|
|
Video |
|---|
| Vertical Resolution | 1440p |
|---|
| Video Resolution | 2K QHD (2560 × 1440 px) |
|---|
| Video Recording Resolution | 2K QHD (2560 × 1440 px), 720p HD (1280 × 720 px) |
|---|
| Video Recording Frame Rate | 15 fps, 20 fps, 25 fps, 30 fps, (Default: 15 fps) |
|---|
| Video Encoding | H.264 |
|---|
| Image Enhancements | 3D-DNR, WDR (Wide Dynamic Range) |
|---|
| Digital Zoom | 12× |
|---|
|
|
Live Video Streaming |
|---|
| Video Streaming Resolution | 2560×1440, 2K QHD |
|---|
| Streaming Frame Rate | 2560×1440@15fps |
|---|
| Streaming Audio Compression | G.711 |
|---|
| Streaming Video Compression | H.264 |
|---|
| Video Protocols | ONVIF, RTSP |
|---|
|
|
Audio |
|---|
| Audio Communication | Two-Way Audio |
|---|
| Audio Input | Built-in Microphone |
|---|
| Audio Output | Built-in Speaker |
|---|
| Audio Encoding | G.711 |
|---|
| Audio Features | 91 dB Siren Volume, Noise Cancellation, Two-Way Audio |
|---|
| Audio Enhancements | Noise Cancellation |
|---|
| Siren Volume | 93dB (Level measured at 4-inch/10-cm distance) |
|---|
|
|
AI Features |
|---|
| On-Device Machine Learning | Yes |
|---|
| AI Activity Zone Tracking | Yes |
|---|
| AI Detections | Video AI |
|---|
| AI Motion Detection | Yes |
|---|
| AI Person Detection | Yes |
|---|
| AI Line-Crossing Detection | Yes |
|---|
| AI Vehicle Detection | Yes |
|---|
|
|
Data Storage |
|---|

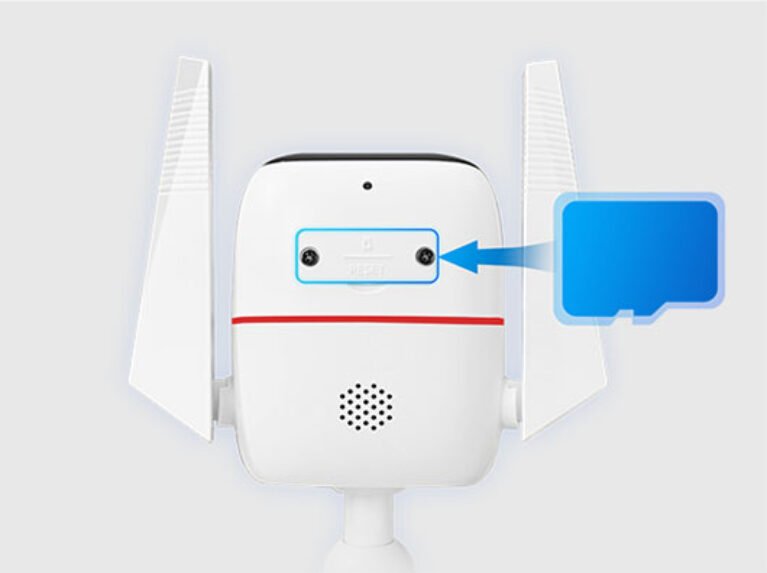

| Local Storage | MicroSD Card, Up to 512 GB |
|---|
| Cloud Storage | Subscription required, Tapo Care Cloud Storage Services |
|---|
|
|
Design & Interface |
|---|
| Product Shape | Square, Bullet |
|---|
| Light Indications | System Status LED |
|---|
| Buttons / Switches | Reset Button |
|---|
| Ports | 1× Ethernet Port, DC Input Socket, Memory Card Slot |
|---|
|
|
Accessories Specification |
|---|
| Adapter Specification | 100-240 V, 50/60 Hz, Output: 9V DC / 0.6A |
|---|
| Adapter Cable Length | 3 meters |
|---|
|
|
Electrical Rated Values |
|---|
| Input Voltage | AC 100-240V, 50/60Hz |
|---|
| Working Voltage | DC 9V |
|---|
|
|
Network Connectivity |
|---|
| Supported Wi-Fi Bands | 2.4GHz |
|---|
| Wireless Standard | IEEE 802.11b/g/n |
|---|
| Wi-Fi Security | WPA/WPA2-PSK/WPA3 |
|---|
| Data Encryption | 128-bit AES Encryption with SSL/TLS |
|---|
| Ethernet Port | 1× 10/100 Mbps, RJ45 Port |
|---|
| Wireless Data Transfer Speed | 11Mbps(802.11b), 54Mbps(802.11g), 150Mbps(802.11n) |
|---|
|
|
Alerts & Notifications |
|---|
| Notification Triggers | Camera Tampering, Line-Crossing Detection, Motion Detection, Person Detection, Vehicle Detection |
|---|
| Notifications | App Notifications, Clips (Tapo care), Snapshot (Tapo Care) |
|---|
| Alarm Mode? |
|
|---|
| Alarm Type | Light, Sound |
|---|
|
|
Safety & Privacy |
|---|
| Working Temperature | -20ºC– 45ºC (-4°F–113°F ) |
|---|
| Storage Temperature | -20 ºC– 60 ºC (-4°F–140°F ) |
|---|
| Operating Humidity | 10%–90%RH, Non-condensing |
|---|
| Storage Humidity | 0~90%RH, Non-condensing |
|---|
| Certifications | RoHS, FCC, CE, EAC, UKCA, RCM, WEEE |
|---|
|
|
In The Box |
|---|
| Number of Products | 1 × Tapo Outdoor WiFi Camera |
|---|
| Power Adapter | 1 x 9V/0.6A DC Power Adapter |
|---|
| Fixing Accessories | Anchors and Screws, Mounting Template, Waterproof Cable Attachments, Waterproof Seal |
|---|
| Quick Start Guide | Yes |
|---|
|
|
Product Warranty |
|---|
| Warranty Period | 1 Year |
|---|
| Service Type | Carry In, By courier |
|---|
| Warranty Coverage | Manufacturing Defects |
|---|
| Warranty Not Covered | Physical Damage, Water Damage |
|---|
|
|
Additional Information |
|---|
| Customer Care Address | TP-LINK India Private Limited, Green Industrial Park, Dongri Pada, Poman, Kaman-Bhiwandi Road, Vasai East, Palghar, Maharashtra – 401208 |
|---|
| Customer Care Phone | Toll Free 1800 2094 168 |
|---|
| Customer Care Email | support.in@tp-link.com |
|---|
|
| Dimensions |
|---|
| Weight | 520 g |
|---|
| Dimensions | 20 × 9 × 19 cm |
|---|
|
