Tuya WiFi LED Strip Controller Single Color | DC5V-24V | Works with Alexa & Google Home (Dimmable)

Tuya WiFi LED Strip Controller Single Color (DW-Dimmable White) – DC5V-24V Dimmable Wireless LED Controller

This Tuya WiFi LED Strip Controller is compatible with Amazon AlexaAmazon Alexa is Amazon’s cloud-based voice service available on hundreds of millions of devices from Amazon and third-party device manufacturers. More and Google AssistantThe Google Assistant is a virtual assistant software application developed by Google that is primarily available on mobile and home automation devices. More. You can add the skill to your Amazon Echo, Dot etc. and control your LED lights with your voice. Now control your LED light strips using your iPhone or Android smartphone from anywhere. This little device helps connecting your Sigle Color LED Profile Lights or Cove Lights to WIFI network. You just need to download SmartLife app from your mobile phone and then start controlling without looking around for a remote. Name each LED strip on your app and sort each into different group. You can control certain group or individual light strip.

About This item

• Built-in Wi-Fi Module: Connects directly to the Wi-Fi router for wireless smart lighting control. (External LED Power Supply needed).
• Flexible Voltage Range: Works with DC 5V-24V power supply, providing versatility for various LED strip light installations.
• Smart Dimming: Adjust brightness of LED Strip Lights.
• 24V Support: Works with 24V LED strips.
• Supported LED Strip Type: Single Color (Dimmable only)
• Output Current: 6A/Channel. 15A combined max.
• Number of Channels: 3
• Input Voltage: DC5V-24V
• Control App: SmartLife App
• Support OS Platforms: Android and iOS
• Connectivity: WiFi (2.4GHz only)
• Integrations: Amazon AlexaAmazon Alexa is Amazon’s cloud-based voice service available on hundreds of millions of devices from Amazon and third-party device manufacturers. More / Google HomeGoogle Home is a smart home platform by Google that allows you to connect all of your compatible devices, manage them on your mobile device and control them using Nest smart speakers and displays. Google Homes Nest smart speakers were formally marketed as Google Home speakers. More / IFTTT / AliGenie / DuerOS / Rokid / Mi
• Operating Temperature:-20-60°

Guidelines for Using DC5V-24V Dimmable Wireless LED Controller

Installation Steps

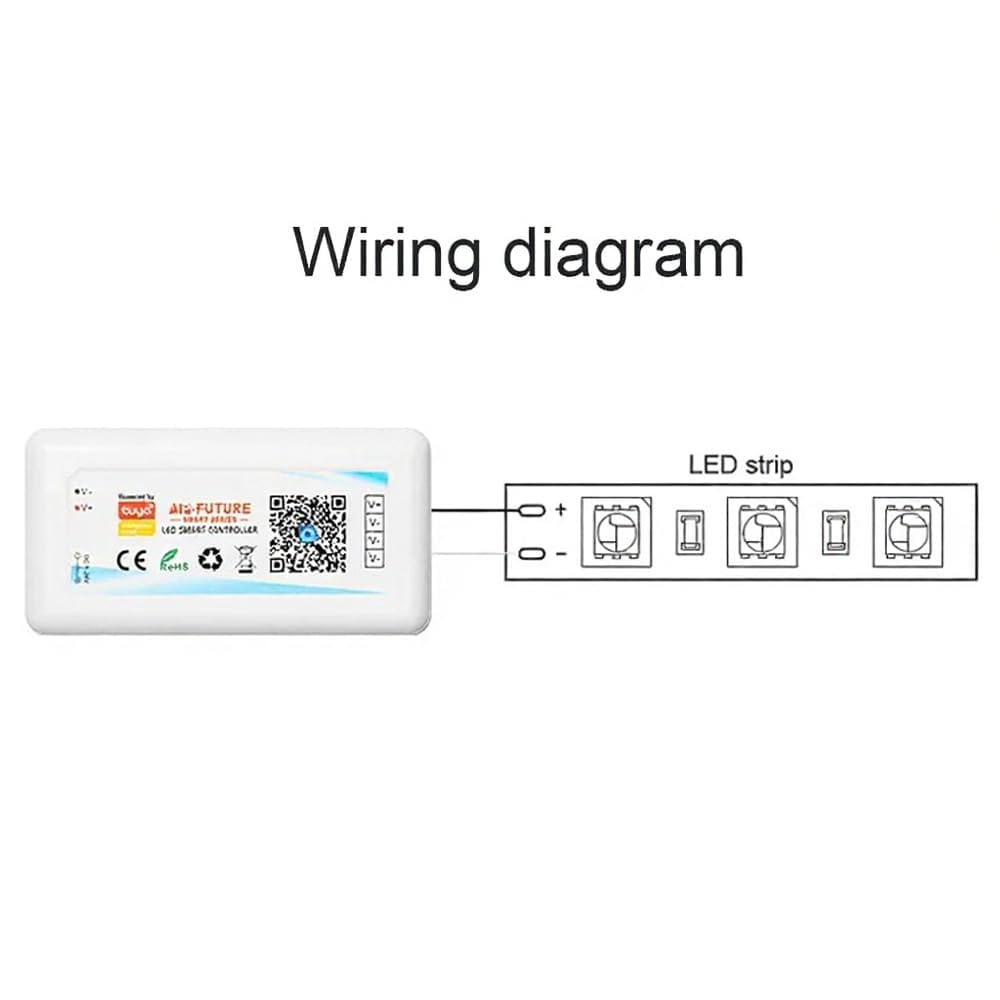

1. Connect a Single Color LED Strip to the output pins of this Tuya WiFi LED Strip Controller , Connect +ve of the LED Strip to the V+ of the LED Controller. Connect -ve of the LED Strip to any of the 3 available V- pins. You can connect up to 3 LED Strips.
2. Connect an LED Power Supply (CV LED Driver) to the input DC pins of the Tuya WiFi LED Strip Controller . NB: Voltage of the LED Power Supply and the LED Strip should match.
3. Search “Smart Life” in your app store, or scan the QR code on User Manual to download and install it.
4. “Add a new Device” from the app dashboard and follow the instructions.

Voice Commands to try

• Alexa, turn{light name} on/off
• Alexa, set {light name} to 1%-100%
• Alexa, dim/brighten {light name}
• Alexa, increase/decrease {light name}

Installation Tips

• Always ensure the V+ pin matches with the strip connector placement before powering on.
• Three V- pins available with 6A current capacity. All works simultaneously, connect the strip to any of the V- pins.
• Select the right LED Power Supply for the selected LED Strip; 24V LED Strip needs 24V LED Power Supply and so on. Check the voltage marking on the LED Strip.
